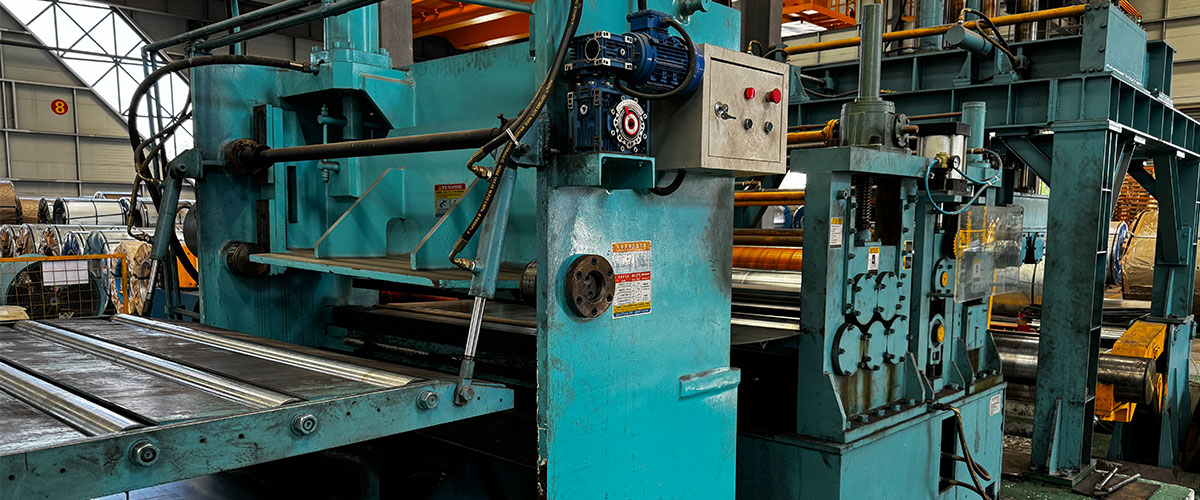

Heavy Duty Slitting Line
The 8x1650mm Heavy Duty Slitting Line is a robust solution for industries that demand precision and durability in metal coil processing. Designed to handle heavy gauge materials with ease, this machine is tailored to meet the requirements of steel coil and sheet metal slitting at a high level of accuracy. This model’s powerful performance and versatile design make it an essential tool for steel processing applications.
1.0-8.0*1650mm High Precision Steel Coil Slitting Line
With capabilities to process material thicknesses ranging from 1.0mm to 8.0mm and a width of up to 1650mm, the 8mmX1650mm heavy duty slitting line offers remarkable precision, even when handling thicker, heavy gauge steel. Its advanced technology minimizes deviation, producing consistently clean and accurate cuts. This level of precision helps industries improve production quality, reduce material waste, and optimize operational efficiency.[/vc_column_text][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1691497988555{margin-bottom: 0px !important;background-color: #edeef0 !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;}”][vc_column width=”1/2″][gem_youtube video_id=”https://www.youtube.com/watch?v=JPpbV07sS5k”][/vc_column][vc_column width=”1/2″][gem_youtube video_id=”`{`embedyt`}` https://www.youtube.com/watch?v=FDXpubY1PSc`{`/embedyt`}`”][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1691497988555{margin-bottom: 0px !important;background-color: #edeef0 !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;}”][vc_column][vc_column_text css=””]

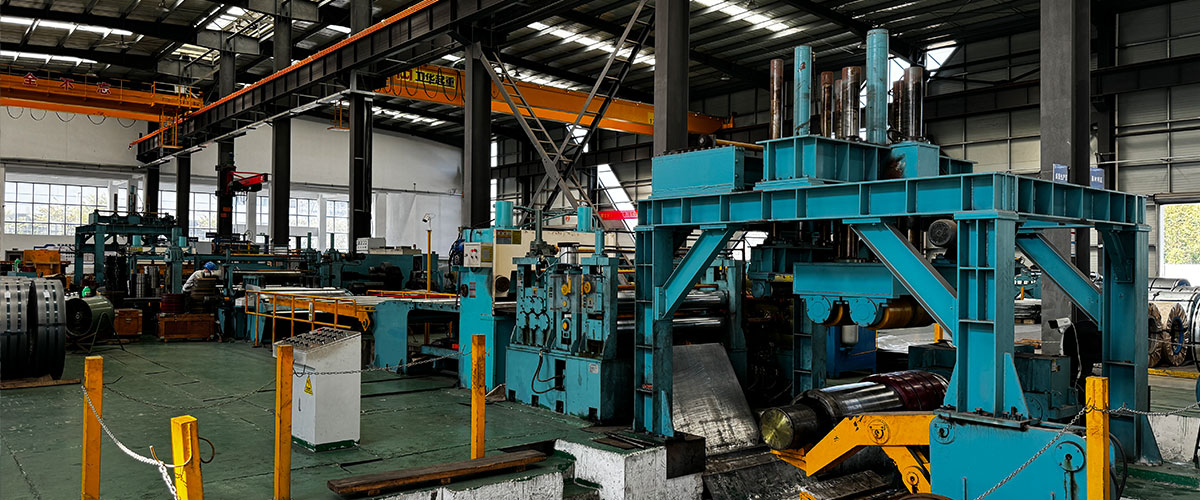

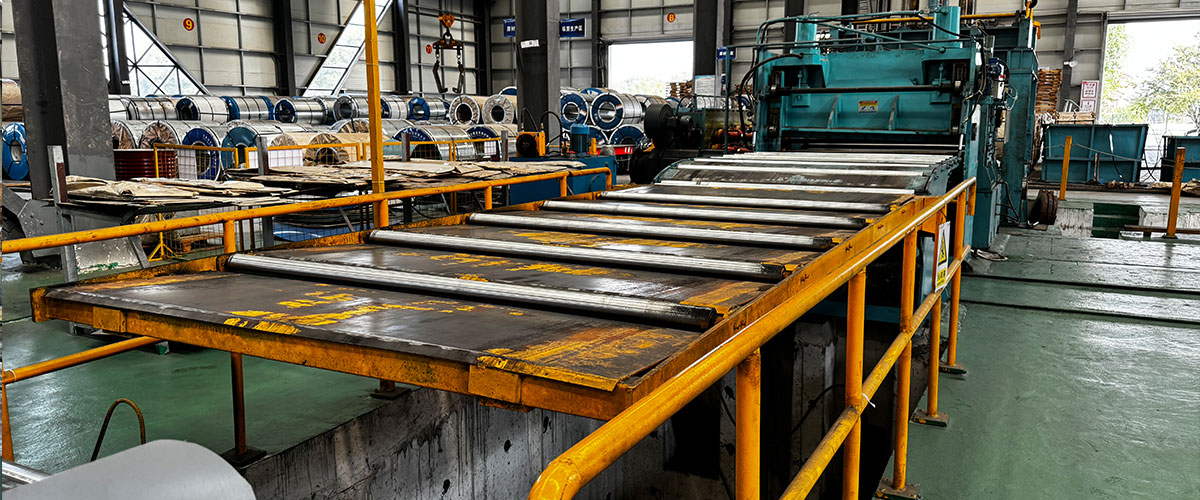

Heavy Gauge Slitting Lines
Constructed with a heavy-duty frame and equipped with high-grade components, the 8x1650mm Slitting Line is engineered for long-term reliability. It operates smoothly under continuous, demanding conditions, ensuring low maintenance needs and reduced downtime. This machine’s durability supports uninterrupted productivity, making it a reliable choice for industrial-scale operations in metal processing.
100m/min High-Strength Steel Slitting Line
The 8mmX1650mm heavy duty slitting line is versatile, designed to process a variety of metal coils, from mild steel to harder materials. It adapts to different coil weights and widths, offering flexibility for manufacturers with diverse product lines. The machine’s adaptable setup reduces the need for separate slitting solutions, making it an efficient, cost-effective addition to any metal processing facility.[/vc_column_text][vc_separator border_width=”3″ css=””][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1691497988555{margin-bottom: 0px !important;background-color: #edeef0 !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;}”][vc_column width=”1/2″][vc_single_image image=”3669″ img_size=”800*600″ alignment=”center” style=”vc_box_outline” css=””][/vc_column][vc_column width=”1/2″][vc_single_image image=”3668″ img_size=”800*600″ alignment=”center” style=”vc_box_outline” css=””][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1691497988555{margin-bottom: 0px !important;background-color: #edeef0 !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;}”][vc_column][vc_column_text css=””]
(1-8X1650mm) High-Strength Steel Slitting Line
Main technical parameters:
An overhead crane lifts the steel coil from the coil storage area to the coil preparation table. The coil car then moves it to the uncoiler mandrel. The mandrel expands to secure the steel coil, the strapping is removed, and the coil head is fed into the clamping device. The coil is then transported to the trimming station to cut off the coil head. Next, it goes through the first loop, into the slitting section, and through a free loop before entering the tension device for recoiling.
The production line consists of the following components: loading cart → uncoiler → feed clamping → head trimmer → loop → centering and alignment device → slitter → online edge waste recoiler → loop → tensioning stand → slitting shear → guide and measuring rollers → recoiler → unloading cart.
Line Speed:
- Maximum Line Speed: 100 m/min
- Threading Speed: 0 ~ 15 m/min
- Acceleration Requirement: 0 ~ 100 m/min acceleration ≤ 60s
- Control Mode: Full line PLC control
- Shearing Capacity
- Thickness = 6mm, 700MPa (Tensile Strength): 8 strips (excluding edge trim)
Processing Equipment:
- Key components such as uncoiler, slitter, and recoiler are processed using CNC machining to ensure precision.
- Auxiliary equipment is processed with digital display machining to ensure processing accuracy.
Line Footprint and Direction:
- Line Footprint: 36 meters (length) x 14 meters (width)
- Line Direction: Facing the line from right to left.
