High Speed Cut to Length Line
A High Speed Cut to Length Line (CTL) is an advanced coil processing system designed to continuously uncoil, level, measure, cut, and stack metal sheets at high production speeds. It converts steel coils into accurately cut sheets with consistent length, flatness, and surface quality.
LOTOSSLITTING designs and manufactures high speed CTL lines for applications requiring high productivity, precise sheet dimensions, and reliable automated operation.
High Precision CTL Line
LOTOS Cut to Length Line (CTL) Machines are engineered to deliver precision, efficiency, and reliability across a wide range of applications. With processing capabilities from 0.2 mm up to 25 mm thickness and coil widths up to 2200 mm, we provide tailored solutions for light, medium, and heavy-duty requirements in industries such as construction, automotive, shipbuilding, and appliance manufacturing. Depending on production demands, we offer rotary shear, flying shear, or hydraulic guillotine shears, ensuring optimal performance in speed, accuracy, and energy efficiency.
Why Choose Lotosslitting’s Cut to Length Lines?
- Exceptional Accuracy
High precision measuring and shearing systems guarantee sheet lengths with extremely tight tolerances, even in high speed production.
- Superior Sheet Flatness
Advanced leveling devices eliminate residual stress and coil set, providing perfectly flat, stress free, and smooth sheets ready for downstream processing.
- Clean & Reliable Cutting
Hydraulic guillotine and flying shear systems ensure burr free edges, enhancing both product quality and ease of fabrication.
- Efficient Material Flow
Smart feeder and looper systems maintain accurate tension control, preventing deformation, scratches, or misalignment during processing.
- Customizable Configurations
From coil width and thickness to material type, every CTL line can be tailored to specific customer requirements, handling steel, stainless steel, aluminum, copper, and special alloys.
- Energy-Efficient Operation
Our lines are engineered for optimized power consumption, reducing operating costs while maintaining high productivity.
- Proven Reliability
Built with robust components and precision engineering, Lotosslitting CTL lines ensure long-lasting durability and consistent performance in demanding industrial environments.
Key Components of the Cut-to-Length Line
- Stand-by Coil Platform : Prepares the next coil for seamless operation.
- Coil Loading Car: Accurately positions coils onto the decoiler.
- Hydraulic Cantilever Decoiler : Unwinds coil under controlled tension.
- Shovel Feeder / Pre-Leveling : Guides the strip and performs initial flattening.
- Looper : Maintains continuous material flow and stabilizes tension.
- Side Guide Device : Ensures strip alignment before leveling.

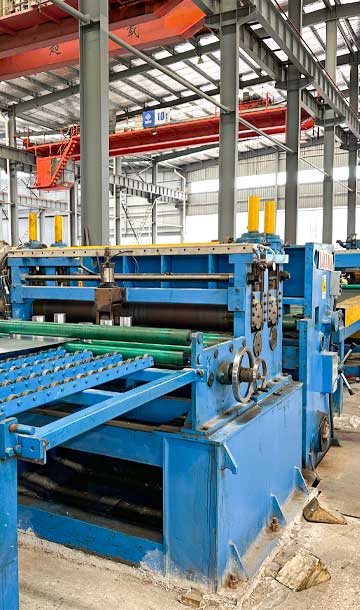

- Main Straightening / Leveling Device : Corrects flatness and removes residual stress.
- Length Measurement System : Real-time feedback for precise sheet-length cutting.
- Guillotine Shear : Produces clean, accurate sheet edges.
- Conveyor Table : Smoothly transports sheets without scratches or deformation.
- Automatic Sheet Stacker : Organizes sheets into neat bundles.
- X-Shaped Lifting Platform : Adjusts stacking height for uniform bundles.
- Automatic Palletizing : Transfers stacked sheets for logistics or packaging.
- Hydraulic and Pneumatic Systems : Powers decoiling, cutting, and stacking mechanisms.
- Electrical & Control Systems : PLCs, sensors, motors, and safety systems for full automation.
Commitment to Quality and Reliability
At Lotosslitting, every CTL line undergoes strict testing and quality control to ensure consistent performance, flatness, and cutting precision.Combined with global warranties and professional after sales support, our lines provide confidence and efficiency for sheet processing operations worldwide.
FAQ :
Yes. A CTL line can normally be programmed to produce different sheet lengths within its designed operating range. The actual range depends on the machine specifications and control system.
Automation improves production consistency and reduces manual intervention. PLC control, servo feeding, automatic counting, flying shearing, and automatic stacking can improve productivity while maintaining stable processing accuracy.
The primary advantage is high productivity with consistent cutting accuracy. When equipped with a flying shear, the line can cut moving material without repeatedly stopping the production process, making it suitable for high-volume coil-to-sheet processing.
Depending on the machine configuration, a Cut to Length Line can process:
- Carbon steel
- Stainless steel
- Galvanized steel
- Pre-painted steel
- Aluminum
- Other coil-fed metal materials
The machine should be designed according to the specific material grade and mechanical properties.
A Cut to Length (CTL) Line is a coil processing system that converts metal coils into flat sheets with a specified length. The line typically performs uncoiling, leveling, feeding, measuring, shearing, conveying, and stacking.
