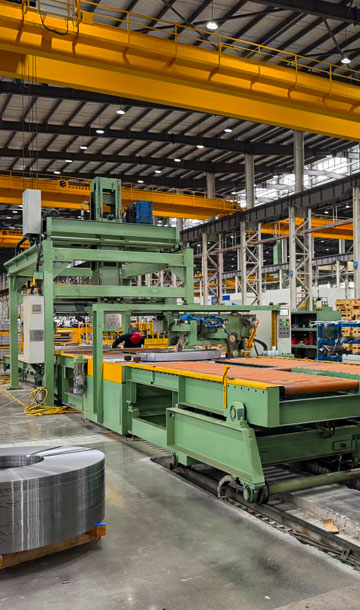

A Horizontal Coil Packing Line is an advanced automated system designed to wrap, protect, weigh, label, and transport metal coils in a horizontal position. It is widely used in steel service centers, slitting plants, and metal processing facilities to improve packaging efficiency while ensuring excellent protection against moisture, dust, scratches, and corrosion.
What Is a Horizontal Coil Packing Line?
A Horizontal Coil Packing Line is an automated production system that packages metal coils in a horizontal position. The coil is transported through the production line, accurately positioned, and wrapped through its inner diameter (eye) using protective packaging materials.
Compared with manual packaging, a fully automatic horizontal coil packaging line delivers higher productivity, consistent wrapping quality, lower labor costs, and improved product protection.
Automated Packaging Solution for Steel and Metal Coils
A Horizontal Coil Packing Line is an advanced automated packaging system designed to wrap, protect, and prepare steel coils, stainless steel coils, wire coils, and other metal coils for storage and transportation. By combining automatic conveying, through-eye wrapping, weighing, labeling, and optional palletizing, a horizontal packing line significantly improves packaging efficiency while ensuring superior coil protection.
Lotosslitting manufactures Horizontal Steel Coil Packing Machines and Horizontal Steel Coil Wrapping Machines that integrate seamlessly with slitting lines, recoiling lines, and metal processing systems. Our customized packaging solutions are engineered to meet the demanding requirements of modern steel service centers and metal processing plants worldwide.
How a Horizontal Steel Coil Packing Machine Works
The packaging process typically includes the following stages:
1. Coil Loading
Finished coils are transferred from the slitting line or storage area onto the automatic conveyor system using cranes or transfer cars.
2. Automatic Coil Positioning
Sensors detect the coil dimensions and automatically position it at the wrapping station.
3. Coil Weighing
An integrated weighing system measures the coil weight and sends data to the PLC for production records.
4. Horizontal Coil Wrapping
The wrapping ring rotates around the coil while protective materials are applied through the coil eye with a preset overlap ratio.
5. Automatic Material Cutting
Once wrapping is completed, the machine automatically cuts and secures the wrapping material.
6. Labeling and Identification
Optional barcode printing and labeling systems apply production information, weight, batch number, and customer identification.
7. Coil Discharge
The packaged coil is transferred to the output conveyor or palletizing system for shipment or warehouse storage.
Main Components of a Horizontal Coil Packing Line
A complete horizontal coil packaging line generally includes:
- Coil Transfer Conveyor
- Automatic Positioning System
- Powered Roller Conveyor
- Horizontal Steel Coil Wrapping Machine
- Wrapping Material Feeding Unit
- Automatic Material Cutting System
- Coil Weighing Station
- Labeling System
- Buffer Conveyor
- Automatic Palletizing System (Optional)
- PLC Electrical Control Cabinet
Each component is designed to ensure continuous, efficient, and reliable operation.
Key Features of a Horizontal Steel Coil Wrapping Machine
Fully Automatic Operation
Advanced PLC control automatically manages coil positioning, wrapping cycles, material feeding, and discharge, minimizing manual intervention.
Through Eye Wrapping Technology
The machine wraps packaging materials through the coil eye, providing complete surface protection without damaging the coil edges.
Adjustable Wrapping Parameters
Operators can easily set:
- Wrapping overlap
- Wrapping speed
- Material tension
- Coil dimensions
- Packaging cycles
using the touch-screen HMI.
High Speed Production
Modern horizontal coil packing machines operate continuously, significantly increasing packaging productivity for high-volume production lines.
Reliable Coil Protection
The wrapping process protects coils against:
- Dust
- Moisture
- Corrosion
- Surface scratches
- Transportation damage
Packaging Materials
Horizontal steel coil packing machines support various packaging materials, including:
- Stretch Film
- VCI Anti-Corrosion Film
- PE Film
- Kraft Paper
- Crepe Paper
- Woven Fabric
- Composite Protective Materials
The packaging material can be selected according to transportation requirements and product specifications.
Advantages of a Horizontal Coil Packing Line
Improved Packaging Quality
Uniform wrapping ensures every coil receives consistent protection and an attractive appearance.
Increased Production Efficiency
Automatic conveying, wrapping, and labeling significantly reduce production time compared with manual packaging.
Lower Labor Costs
One operator can supervise the entire packaging process, reducing labor requirements and operating expenses.
Better Coil Protection
Professional packaging minimizes damage during warehouse handling, overseas shipping, and long-distance transportation.
Reduced Material Waste
Automatic control optimizes wrapping overlap and packaging material consumption.
Enhanced Workplace Safety
Automated coil handling reduces manual lifting and minimizes the risk of workplace accidents.
Applications
Horizontal Coil Packing Lines are widely used in:
- Steel Service Centers
- Stainless Steel Processing Plants
- Carbon Steel Coil Manufacturers
- Aluminum Coil Processing Facilities
- Copper Strip Production Lines
- Wire Rod Processing Plants
- Slitting Line Production
- Metal Distribution Centers
- Automotive Manufacturing
- Home Appliance Manufacturing
Horizontal Wire Coil Packaging Line for Metal Coils
A Horizontal Wire Coil Packaging Line for Metal Coils is specially designed for packaging wire coils, strip coils, and narrow slit coils after production.
The system can automatically:
- Transport wire coils
- Center the coil
- Perform through-eye wrapping
- Apply protective materials
- Print labels
- Transfer finished coils for storage
This automated solution improves packaging consistency while protecting delicate wire products during transportation
Integration with Slitting Lines
Lotosslitting horizontal coil packing systems can be fully integrated with:
- Steel Coil Slitting Lines
- Stainless Steel Slitting Lines
- Recoiling Lines
- Cut to Length Lines
- Automatic Coil Storage Systems
The integrated production line enables continuous processing from coil slitting to final packaging, reducing handling time and increasing overall plant efficiency.
Why Choose LOTOSSLITTING?
LOTOSSLITTING is a professional manufacturer of steel coil processing and packaging equipment with extensive experience in designing customized horizontal coil packing solutions.
Our advantages include:
- Fully automatic horizontal coil packing lines
- Customized engineering solutions
- High-speed wrapping systems
- PLC and touch-screen control
- Automatic weighing and labeling
- Optional robotic palletizing
- Integration with slitting and recoiling lines
- Professional installation and commissioning
- Global technical support
- Long-term after-sales service
Our equipment is designed to deliver reliable performance, high productivity, and consistent packaging quality for steel processing companies around the world.
Conclusion
A Horizontal Coil Packing Line is an essential investment for manufacturers seeking efficient, automated, and reliable packaging of steel and metal coils. By combining automatic conveying, horizontal coil wrapping, weighing, labeling, and optional palletizing, the system enhances production efficiency while ensuring excellent coil protection.
Whether packaging stainless steel coils, carbon steel coils, aluminum coils, or wire coils, LOTOSSLITTING provides customized Horizontal Steel Coil Packing Machines and Horizontal Wire Coil Packaging Lines that meet the highest standards of automation, durability, and packaging quality.
FAQ:
Lotosslitting designs and manufactures high-performance Horizontal Coil Packing Lines with advanced automation, robust mechanical construction, and reliable PLC control systems. Our solutions offer:
- Customized machine configurations
- Integration with slitting and recoiling lines
- Automatic wrapping, weighing, and labeling
- Optional palletizing systems
- High production efficiency
- Professional installation and commissioning
- Comprehensive after-sales technical support
Major benefits include:
- Increased packaging efficiency
- Reduced labor costs
- Consistent wrapping quality
- Better coil protection
- Lower packaging material consumption
- Improved workplace safety
- Reduced transportation damage
Yes. The system can be fully integrated with steel coil slitting lines, stainless steel slitting lines, recoiling lines, and automatic coil handling systems, creating a continuous production and packaging process.
A Horizontal Steel Coil Packing Machine is the core equipment of the packing line. It wraps packaging materials through the eye of the coil using an automatic rotating ring, providing complete and secure protection for metal coils.
