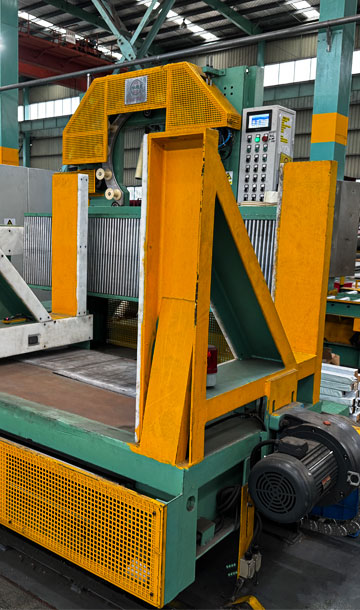

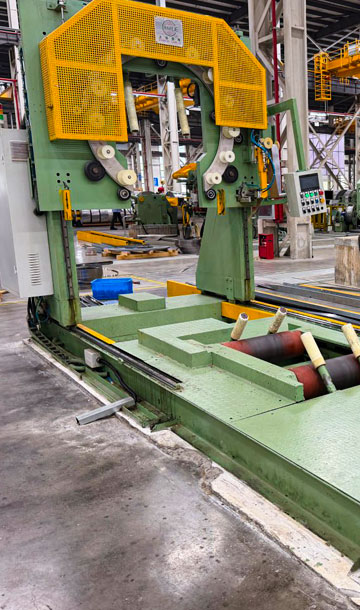

Vertical Coil Packing Lines are automated packaging systems designed to wrap steel, stainless steel, aluminum, and slit coils in a vertical position. These high efficiency steel coil wrapping machines provide secure, moisture-resistant packaging, protect coils from scratches and corrosion, and improve handling.
Automatic Vertical Wire Coil Packaging Line
A Vertical Coil Packing Line is an automated packaging system designed to wrap steel coils in a vertical (eye-to-sky) position using stretch film, VCI paper, woven fabric, PE film, or other protective materials. Also known as a Steel Coil Wrapping Machine or Vertical Coil Stretch Wrapping Machine, this equipment protects coils from moisture, corrosion, dust, scratches, and transportation damage while improving packaging efficiency and product presentation.
Modern steel service centers, slitting lines, and rolling mills rely on Vertical Coil Packing Lines to ensure safe handling, secure packaging, and reduced labor costs. By automating the wrapping process, manufacturers can achieve consistent packaging quality and higher production throughput.
What Is a Vertical Coil Packing Line?
A Vertical Coil Packing Line is an industrial packaging solution that wraps steel coils standing vertically with their eye facing upward. Unlike horizontal packing systems, the wrapping ring rotates around the coil while the coil remains in a stable vertical position.
This configuration is particularly suitable for:
- Slit steel coils
- Stainless steel coils
- Galvanized steel coils
- Aluminum coils
- Copper coils
- Cold rolled steel coils
- Hot rolled steel coils
The Vertical Coil Stretch Wrapping Machine applies multiple layers of packaging material to create a secure and durable protective package.
How Does a Steel Coil Wrapping Machine Work?
A Steel Coil Wrapping Machine follows an automated sequence to package coils efficiently.
1. Coil Loading
A coil trolley or crane places the finished coil onto the conveyor or packing station.
2. Coil Positioning
Sensors automatically detect the coil dimensions and position the coil for accurate wrapping.
3. Film Feeding
The wrapping system feeds stretch film or protective material through the rotating ring.
4. Coil Wrapping
The rotating ring moves around the coil while the packaging material is tensioned uniformly to create multiple protective layers.
5. Automatic Cutting
After reaching the preset wrapping cycles, the machine automatically cuts and secures the packaging material.
6. Coil Discharge
The wrapped coil exits the Vertical Coil Packing Line and is ready for storage or shipment.
Main Components of a Vertical Coil Stretch Wrapping Machine
A modern Vertical Coil Stretch Wrapping Machine typically consists of:
- Coil Loading Conveyor
- Coil Positioning Device
- Rotating Wrapping Ring
- Stretch Film Dispenser
- Film Tension Control System
- Automatic Film Cutter
- Conveyor System
- PLC Control System
- Touch Screen HMI
- Safety Protection System
- Electrical Control Cabinet
Each component is engineered to maximize packaging efficiency while ensuring operator safety.
Packaging Materials
A Vertical Coil Packing Line can use different packaging materials depending on customer requirements.
Common materials include:
- Stretch Film
- PE Film
- VCI Anti-Corrosion Paper
- Woven Fabric
- Kraft Paper
- Bubble Film
- Moisture Barrier Film
- Composite Packaging Materials
Multiple materials can be combined to provide maximum protection during international transportation.
Advantages of a Vertical Coil Packing Line
Investing in a Vertical Coil Packing Line provides numerous operational and economic benefits.
Superior Coil Protection
The packaging prevents:
- Moisture penetration
- Surface scratches
- Dust contamination
- Corrosion
- Mechanical damage
High Packaging Efficiency
Automatic operation significantly increases packaging speed while reducing manual labor.
Uniform Wrapping Quality
The Steel Coil Wrapping Machine applies consistent wrapping tension, ensuring every coil receives identical protection.
Lower Packaging Costs
Optimized film consumption minimizes packaging material waste.
Improved Transportation Safety
Secure packaging prevents coil movement during handling and shipping.
Enhanced Product Appearance
Uniform wrapping improves the professional appearance of finished steel coils.
Applications of Vertical Coil Packing Lines
A Vertical Coil Stretch Wrapping Machine is widely used in:
- Steel Service Centers
- Steel Coil Processing Plants
- Slitting Lines
- Cut to Length Lines
- Cold Rolling Mills
- Stainless Steel Processing
- Aluminum Processing
- Copper Coil Manufacturing
- Export Packaging Facilities
Industries Served
Vertical coil packaging equipment supports numerous industries, including:
- Automotive Manufacturing
- Construction Materials
- Home Appliances
- Electrical Equipment
- Solar Energy
- Metal Fabrication
- Warehouse Logistics
- Steel Distribution Centers
Automation Features
Modern Vertical Coil Packing Lines incorporate intelligent automation technologies such as:
- PLC Automatic Control
- Touch Screen HMI
- Automatic Coil Detection
- Adjustable Wrapping Programs
- Variable Speed Drives
- Automatic Film Cutting
- Fault Diagnosis System
- Production Data Monitoring
- Safety Interlock Protection
These features improve machine reliability while reducing operator intervention.
Why Packaging Quality Matters ?
Steel coils are valuable products that require proper protection throughout the supply chain. Poor packaging can result in:
- Surface rust
- Coil deformation
- Scratches
- Edge damage
- Customer complaints
- Higher transportation costs
A professionally designed Steel Coil Wrapping Machine minimizes these risks and ensures that coils arrive in excellent condition.
Why Choose LOTOSSLITTING?
LOTOSSLITTING designs and manufactures advanced Vertical Coil Packing Lines and Steel Coil Wrapping Machines for steel processing industries worldwide.
Our solutions provide:
- Heavy duty machine construction
- High speed automatic packaging
- Intelligent PLC control
- Stable wrapping tension
- Custom machine configurations
- Easy maintenance
- One year warranty
- Ten years of after sales technical support
Whether integrated with a slitting line, cut to length line, or used as a standalone packaging system, Lotosslitting delivers reliable, efficient, and cost effective coil packaging solutions.
Conclusion
A Vertical Coil Packing Line is an essential solution for modern steel processing facilities seeking efficient, automated, and reliable coil packaging. By utilizing a high performance Steel Coil Wrapping Machine or Vertical Coil Stretch Wrapping Machine, manufacturers can improve product protection, reduce labor costs, enhance packaging consistency, and ensure safe transportation of valuable steel coils. With advanced automation, precision engineering, and customizable configurations, a vertical coil packing system is a smart investment for increasing productivity and maintaining the highest packaging standards in the metal processing industry.
FAQ:
Yes. A Vertical Coil Packing Line can be integrated directly with a steel slitting line or operated as a standalone packaging system to improve production efficiency and reduce manual handling.
Vertical Coil Packing Lines are widely used in:
- Steel service centers
- Slitting line production plants
- Rolling mills
- Metal processing factories
- Automotive industry
- Construction material manufacturers
- Steel distribution centers
A Vertical Coil Packing Line is an automated packaging system designed to wrap steel coils in a vertical position using stretch film, VCI paper, PE film, or other protective materials. It protects coils from moisture, dust, corrosion, and mechanical damage during storage and transportation.
The coil is automatically loaded onto the packing station, positioned accurately, wrapped by a rotating ring with the selected packaging material, and discharged after the wrapping cycle is completed. The entire process is controlled by a PLC system for efficient and consistent operation.
Yes. The machine features an adjustable tension control system that ensures uniform wrapping while protecting the coil surface from damage.
Lotosslitting manufactures reliable Vertical Coil Packing Lines with advanced PLC control, robust construction, and high packaging efficiency. Our machines provide consistent wrapping quality, easy operation, customized solutions, 1 year warranty, and 10 years of after sales technical support for customers worldwide.
