Technical Overview, Components, and Selection Criteria
Slitting equipment is used in metal processing to cut wide master coils into several narrower strips of defined width. The process is performed continuously. The coil is uncoiled, slit longitudinally by pairs of rotating circular knives, and rewound into individual coils.
Steel mills and service centers use slitting lines to prepare material for downstream manufacturing. Typical downstream uses include roll forming, tube and pipe production, stamping, and electrical laminations. The accuracy of the slitting stage directly affects the quality of every later process, so equipment selection and configuration deserve careful engineering attention.
Working Principle
A slitting line operates on a shearing principle. Two parallel arbors carry matched sets of circular knives, with the upper and lower knives overlapping slightly. As the strip passes between them, the knives shear the material along continuous lines. The strip is not drawn or deformed to any significant degree.
The process sequence is as follows:
- The master coil is loaded onto the decoiler (uncoiler).
- The strip head is threaded through the entry guide and, where fitted, a leveling or pinch unit.
- The strip passes through the slitter head, where it is divided into the required widths.
- Edge trim is removed and collected by a scrap winder or chopper.
- The slit strips are separated, tensioned, and wound onto the recoiler.
- The finished coils are strapped and unloaded.
Slitter Head and Knives

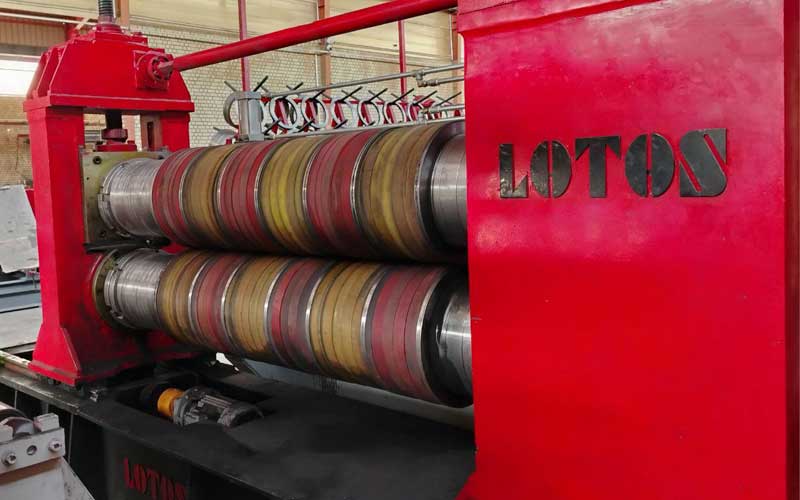

The slitter head is the most critical assembly. It consists of an upper and a lower arbor on which knives and spacers are mounted alternately. Strip width is set by the spacer thicknesses and the knife positions.
Knife quality governs edge condition and tool life. Common knife materials include tool steels such as D2 (SKD11) and tungsten carbide for demanding or abrasive applications. Hardened and precision-ground knives hold their edge longer and produce more consistent results.
Tension Control
Tension control at the decoiler and recoiler is essential for flat, evenly wound coils. Where several narrow strips are wound on one recoiler, a tension station or bridle and a separator maintain uniform winding tension across all strips. Insufficient tension control leads to telescoping, loose wraps, and uneven coil edges.
Key Technical Parameters
The values below are typical industry ranges. Actual figures depend on the material, line design, and application.
Factors Affecting Slitting Quality
Knife Clearance and Overlap
Knife clearance, the radial gap between the upper and lower knives, and knife overlap must be set according to the thickness and mechanical properties of the strip. Incorrect settings are the most common cause of burrs, rough edges, and premature knife wear. Harder and thicker materials generally require different clearance settings from soft and thin materials.
Burr and Edge Condition
A small, uniform burr is normal in any shearing process. Excessive burr indicates worn knives, incorrect clearance, or poor knife alignment. Edge quality is especially important when the strip will be roll formed, welded, or coated.
Camber and Flatness
Camber is the lateral curvature of a slit strip. It can arise from the coil’s own condition, uneven tension, or machine misalignment. Narrow strips are especially sensitive to it. Good machine rigidity, accurate alignment, and stable tension keep camber within acceptable limits.
Surface Protection
For pre painted, galvanized, stainless, and aluminum materials, the line should avoid scratching the strip surface. Features such as protective rolls, paper interleaving, and smooth guide surfaces help preserve the finish.
Applications
Slitting equipment is used for a wide range of metals and industries:
- Materials: carbon steel, galvanized steel, pre-painted steel, stainless steel, aluminum, and copper
- Roll forming and profile production: feed strips for purlins, studs, tracks, and guide rails
- Tube and pipe manufacturing: strips for welded tube mills
- Automotive and appliance components: blanks and strips for stamping
- Electrical industry: silicon steel strips for transformer and motor laminations
Selection Criteria
Selecting the right slitting equipment requires a clear definition of production requirements. The following points should be reviewed:
- Material range: types, minimum and maximum thickness, and maximum coil width.
- Coil weight and dimensions: inner and outer diameters and maximum weight.
- Strip width and tolerance requirements: these determine the required slitter head precision.
- Required output: daily or annual tonnage, which sets the line speed and degree of automation.
- Surface sensitivity: whether protective measures are needed.
- Automation level: options include automatic knife positioning, quick-change arbors, and automatic strapping.
- After sales support: spare knives, technical service, installation, and commissioning.
Maintenance Recommendations
Regular maintenance extends equipment life and protects product quality:
- Inspect knives regularly and regrind or replace them on a defined schedule.
- Check spacer and arbor condition for wear and runout.
- Lubricate bearings, gearboxes, and guides according to the manufacturer’s schedule.
- Verify the alignment of the decoiler, slitter head, and recoiler.
- Calibrate tension control systems periodically.
Conclusion
Slitting equipment is a core asset in coil processing. Reliable results depend on a well engineered slitter head, accurate tension control, quality knives, and correct setup. Defining material, width, and output requirements precisely before purchase allows the equipment to match the production task and deliver stable quality over its service life.
For project-specific requirements, LotosSlitting can provide technical consultation and recommend a suitable slitting line configuration.
FAQ :
The interval depends on the material, thickness, and volume processed. Rising burr height is the usual indication that regrinding is required.
A slitting line cuts the coil lengthwise into narrower coils. A cut-to-length line cuts the strip across its width to produce flat sheets.
Paired circular knives mounted on upper and lower arbors shear the moving strip along continuous lines, dividing it into the required widths.
Excessive burrs are typically caused by worn knives, incorrect knife clearance or overlap, or poor knife alignment.
A typical line consists of a coil car, decoiler, entry guide, slitter head, scrap winder, loop pit, separator and tension unit, recoiler, and coil unloading car.
