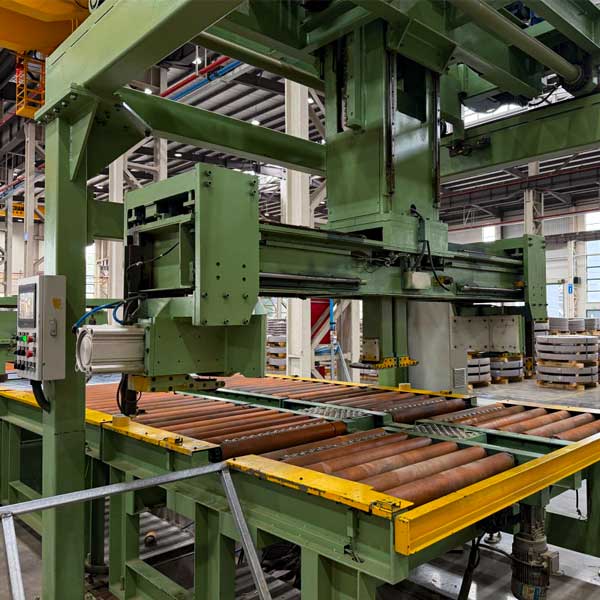

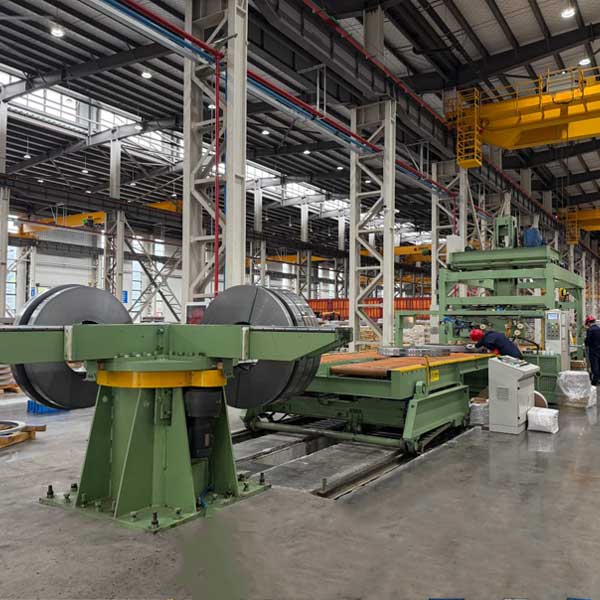

Horizontal Coil Wrapping Machine
horizontal coil wrapping machine functions as a core component within comprehensive coil packaging systems. LOTOS offers fully integrated solutions that seamlessly link processes from coil pickup via lifting and tilting equipment, through precise weighing, surface cleaning, end face protection, inner and outer wrapping, banding, and labeling. This holistic automation minimizes manual handling, reduces damage risks, optimizes floor sp
Technical Parameters :
| Item | Specification | |
| Coil Type | Narrow Stainless Steel Coil | |
| Coil Width | 10–230 mm | |
| Coil Inner Diameter | Ø300 / Ø400 / Ø508 mm | |
| Coil Outer Diameter | Ø500–Ø1300 mm | |
| Coil Weight | ≤1000 kg |
- Main Equipment Configuration
| No. | Equipment Name | Quantity |
| 1 | Rotating Cross Arm | 1 Set |
| 2 | Automatic Pick-up & Tilting Transfer Car | 1 Set |
| 3 | Weighing Roller Conveyor System | 1 Set |
| 4 | Automatic Coil Wrapping Machine | 1 Set |
| 5 | Transition Roller Conveyor | 1 Set |
| 6 | Buffer Roller Conveyor | 1 Set |

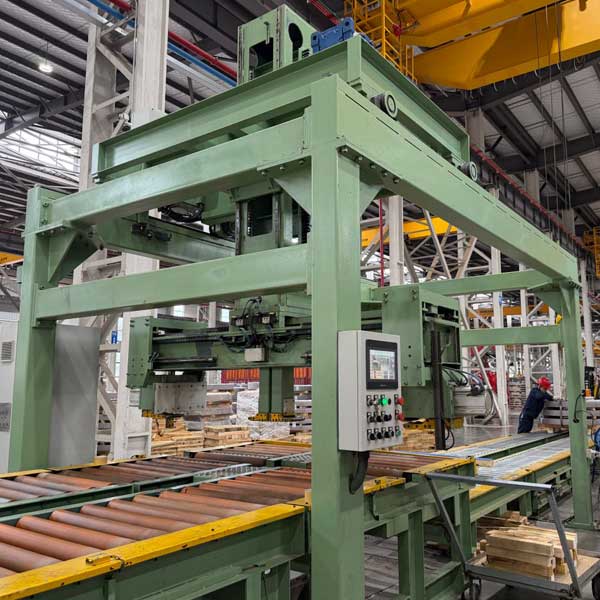

| 7 | Automatic Handling & Palletizing System | 1 Set |

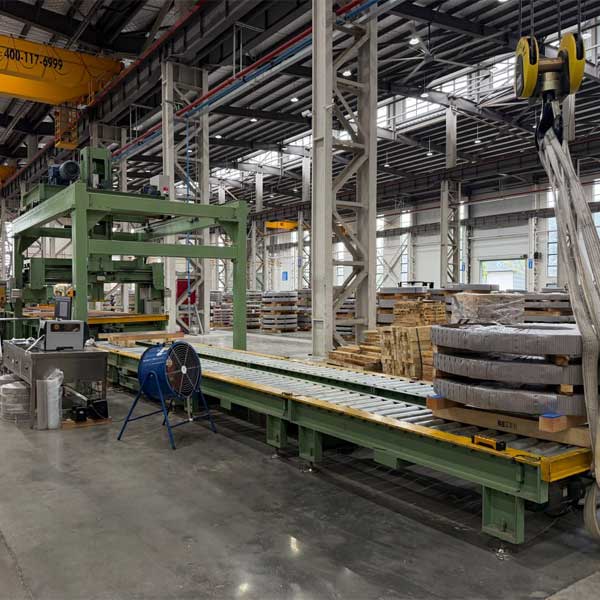

| 8 | Palletizing Roller Conveyor | 1 Set |
| 9 | Output Roller Conveyor | 1 Set |
| 10 | Electrical Control Cabinets | 4 Sets |
FAQ:
Yes. Automatic centering and positioning systems allow the machine to adapt to various coil outer diameters and widths without extensive manual adjustments.
Key advantages include:
- Reduced labor costs
- Faster packaging speed
- Consistent packaging quality
- Improved product protection
- Reduced material waste
- Increased production efficiency
- Better appearance of finished packages
The coil is transported into the wrapping station where powered rollers rotate the coil while the wrapping ring rotates around the coil eye. The packaging material is continuously applied with a preset overlap ratio until the coil is completely wrapped.
The capacity depends on the machine design. Typical specifications include:
- Coil Width: 10–1500 mm
- Coil OD: 500–2000 mm
- Coil ID: 300–610 mm
- Coil Weight: Up to 5 tons or more
Customized solutions are available for special coil dimensions.
The machine can pack various stainless steel coils, including:
- Slit strip coils
- Narrow stainless steel coils
- Stainless steel strip rolls
- Cold-rolled stainless steel coils
- Stainless steel band coils
- Precision stainless steel strip coils
