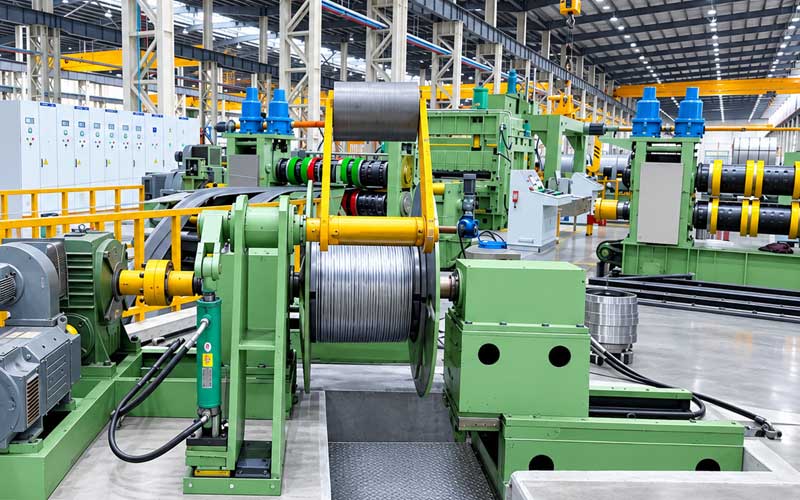

Key Components of a Heavy Gauge Slitting System

A complete heavy gauge slitting line consists of several coordinated sections. Each must be sized and built for heavy duty operation.

1. Coil Car and Coil Loading Equipment

Heavy coils require a robust coil car with hydraulic lifting and traversing functions. The car transports the coil from the storage area and positions it accurately onto the uncoiler mandrel. Accurate alignment reduces handling time and prevents damage to the coil edge.

2. Uncoiler (Decoiler)

The uncoiler supports and unwinds the master coil. For heavy gauge applications, the uncoiler must provide:

• A heavy duty mandrel with hydraulic expansion
• A high torque drive system, usually with a gearbox and AC or DC motor
• A coil hold-down arm to control the coil outer wraps
• A coil support or outboard bearing for large coil weights

3. Entry Pinch Roll, Straightener, and Threading Table

Heavy gauge strip is stiff and often retains significant coil set. A pinch roll and straightener flatten the material head end and guide it into the slitter. A strong threading table with side guides ensures safe and accurate feeding.

4. Slitting Head

The slitting head is the core of the system. It carries two parallel arbors on which circular slitter knives and spacers are mounted. As the strip passes between the upper and lower knives, the material is sheared into multiple narrow strips.

Important design considerations include:

• Arbor diameter and rigidity: Large, heavily supported arbors resist deflection under thick material cutting forces.
• Knife clearance and overlap control: Precise adjustment is essential for clean edges, particularly on thick or high-strength material.
• Motorized or hydraulic arbor positioning: Quick setup shortens changeover times.
• Slitter knife quality: Tool steel grade, hardness, and tolerance control directly influence cut quality and blade life.

5. Scrap Winder or Scrap Chopper

Edge trim from heavy gauge material is thick and difficult to handle. A scrap chopper cuts the trimmed edge into short pieces for removal, while a heavy-duty scrap winder coils the edge trim for disposal or reuse.

6. Loop Pit or Loop Control

A loop between the slitter and the recoiler absorbs speed differences and keeps material tension stable. In heavy gauge lines, a well-designed loop pit or loop bridge protects the strip surface and maintains smooth operation.

7. Tension Station (Separator and Tension Unit)

The tension station applies controlled back tension to the slit strips before recoiling. This produces tight, well-aligned coils and prevents telescoping or loose wraps. Heavy gauge systems use high-capacity tensioning with large-diameter pads or rolls.

8. Recoiler

The recoiler winds the slit strips into finished coils. Features commonly required include:

• A heavy duty expanding mandrel
• A separator disc arm to keep strips apart
• A coil pusher or stripper for safe coil removal
• Precise edge alignment for neat, even coil sides

9. Coil Unloading, Strapping, and Weighing

Finished coils are removed by a coil car or unloading device, then strapped, weighed, and labeled. Automatic unloading improves safety and throughput.

10. Electrical and Control System

A modern PLC-based control system coordinates all line functions. Typical features include recipe storage, automatic tension control, line speed synchronization, and diagnostic alarms. A touchscreen interface makes operation clearer and reduces setup errors.

Technical Challenges in Heavy Gauge Slitting

Processing thick steel introduces challenges that are less critical in lighter gauge lines.

Cutting Force and Machine Rigidity

The force required to shear thick, high strength steel is substantial. A frame with insufficient rigidity will flex, causing inconsistent knife overlap, poor edge quality, and premature tool wear. Heavy gauge slitters use thick welded and stress-relieved frames with precision-machined bearing housings.

Edge Quality and Burr Control

Burr height, edge camber, and edge cracking are common quality concerns. Correct knife clearance, proper knife material, and accurate overlap settings help maintain acceptable edge quality across different thicknesses and grades.

Strip Flatness and Camber

Slit strips may exhibit camber (sideways bow) because of residual stress released during cutting. Proper straightening before slitting, correct tension control, and well-maintained knives help control this effect.

Tooling Wear and Maintenance

Slitting thick or abrasive material accelerates knife wear. Regular inspection, regrinding, and timely replacement are essential. Quality tooling and a systematic knife management program reduce unplanned downtime.

Safety

Large coils and thick strip store significant energy. A heavy gauge slitting line should include guarding, interlocks, emergency stops, light curtains where required, and well-defined operating procedures.

Key Factors When Selecting a Heavy Gauge Slitting System

Choosing the correct line requires matching machine capability to production requirements. The following factors should be evaluated.

1. Thickness and width range: Define the full range of materials, including the maximum and minimum thickness and width, and allow for future product needs.
2. Material grade and yield strength: Higher strength material requires greater cutting force and a stronger frame and drive.
3. Coil weight and dimensions: Confirm the inner diameter, outer diameter, and maximum weight to size the uncoiler, coil car, and recoiler correctly.
4. Production volume and line speed: Determine the annual throughput target and the speed at which the line must run to achieve it.
5. Slit width tolerance and edge quality: Specify the tolerances required by the end application.
6. Number of strips: Establish the maximum number of cuts the line must produce in a single pass.
7. Changeover time: Quick knife setup and automatic positioning improve productivity when product mix varies frequently.
8. Automation level: Consider automatic coil loading, knife positioning, coil unloading, and data tracking according to labor cost and production goals.
9. Manufacturer experience and after-sales support: A supplier with proven heavy gauge references, strong engineering capability, and responsive technical service reduces project risk.

Applications of Heavy Gauge Slitting Lines

Heavy gauge slit strip is a base material for numerous industries:

• Steel pipe and tube production: Slit strip feeds ERW and welded tube mills.
• Structural steel: Beams, channels, and fabricated sections.
• Automotive and transport: Chassis components, truck frames, and wheel rims.
• Construction machinery: Booms, frames, and wear plates.
• Energy sector: Wind tower components, pressure vessels, and pipeline products.
• Shipbuilding and heavy fabrication: Hull sections and structural reinforcement.
• Steel service centers: Supplying custom-width strip to a broad customer base.

Maintenance Best Practices

Consistent maintenance extends equipment life and protects product quality.

• Inspect knives and spacers regularly for wear, chipping, and dimensional accuracy.
• Keep arbors and bearings lubricated according to the manufacturer’s schedule.
• Check hydraulic systems for pressure stability and fluid cleanliness.
• Verify alignment of the uncoiler, slitter, and recoiler periodically.
• Calibrate tension control and sensors to maintain stable operation.
• Train operators in correct setup, threading, and safety procedures.

Why Choose Lotos for Heavy Gauge Slitting Solutions

Lotos designs and manufactures slitting lines engineered for demanding, high-load production environments. Each heavy gauge slitting system is configured according to the customer’s material range, output targets, and plant layout. Emphasis is placed on structural rigidity, precision tooling, reliable electrical control, and practical operator focused design.

From initial technical consultation to installation, commissioning, and after-sales support, Lotos works with customers to deliver a slitting solution that meets quality and productivity requirements over the long term.

Conclusion

A heavy gauge slitting system is a significant capital investment that requires careful specification and reliable engineering. By understanding the main components, technical challenges, and selection criteria, buyers can choose a line that delivers consistent strip quality, high material yield, and dependable operation.
